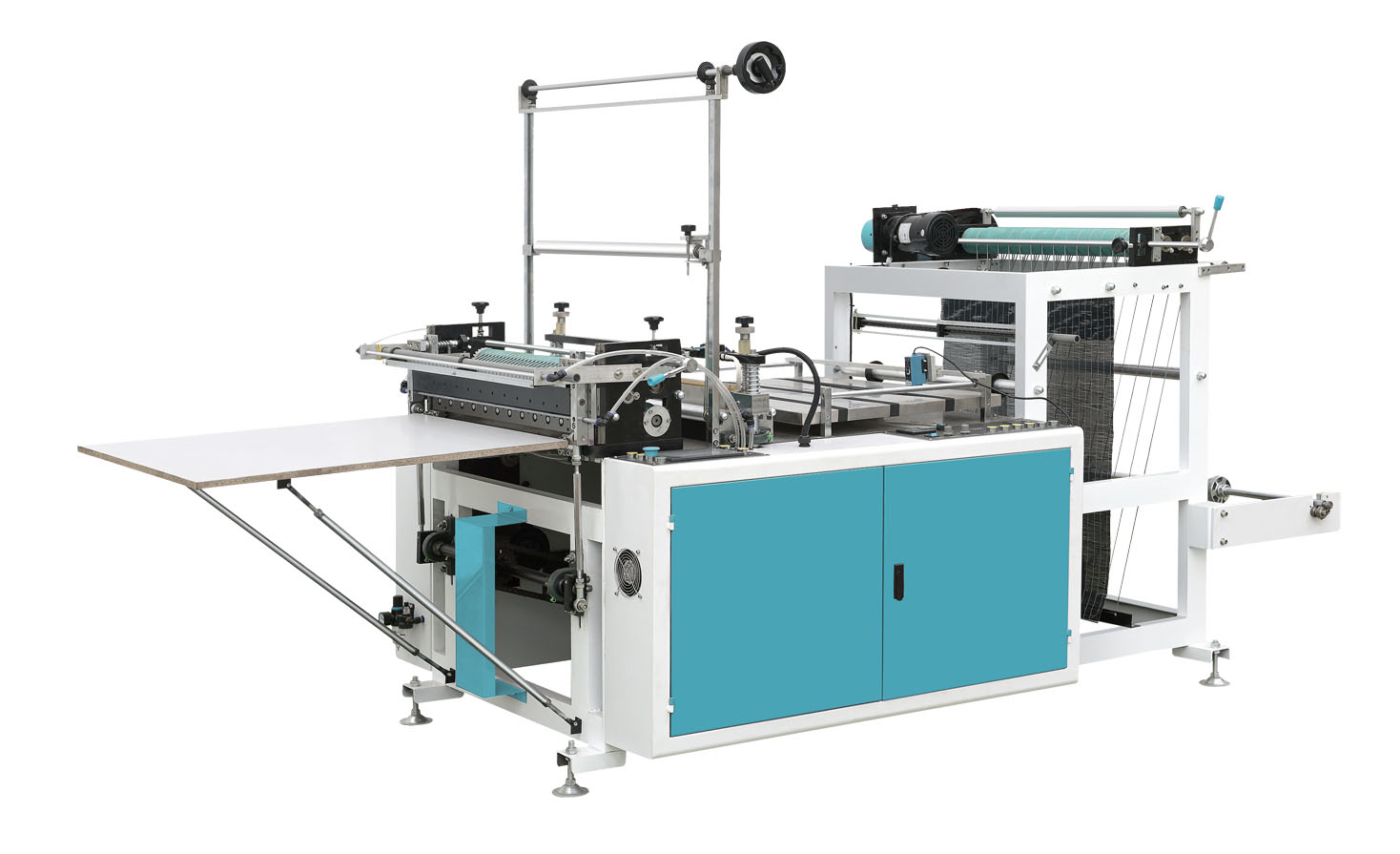

Single-Layer Heat-Seal Cold-Cut Bag Machine

1. This machine adopts photoelectric unloading, photoelectric detection of color mark, and automatic adjustment of sealing and cutting position.

2. The main motor adopts variable frequency control motor, designed with upper stop, keyboard setting customized bag length, electronic counting, stepper motor controlled sealing through computer, equipped with static elimination device.

Mechanical Parameter

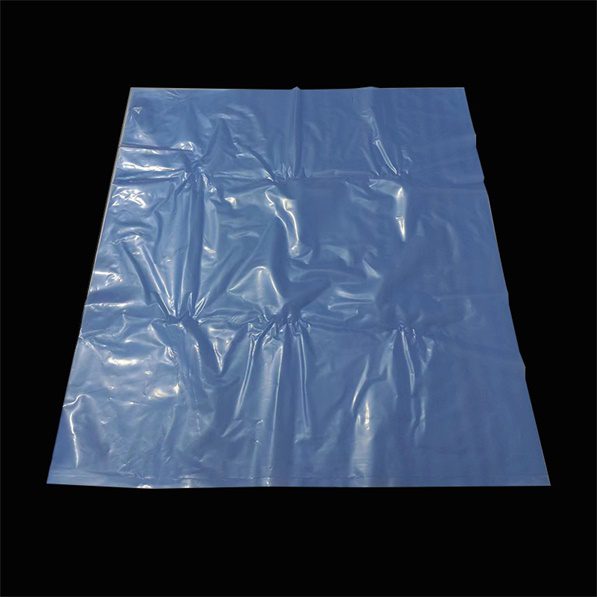

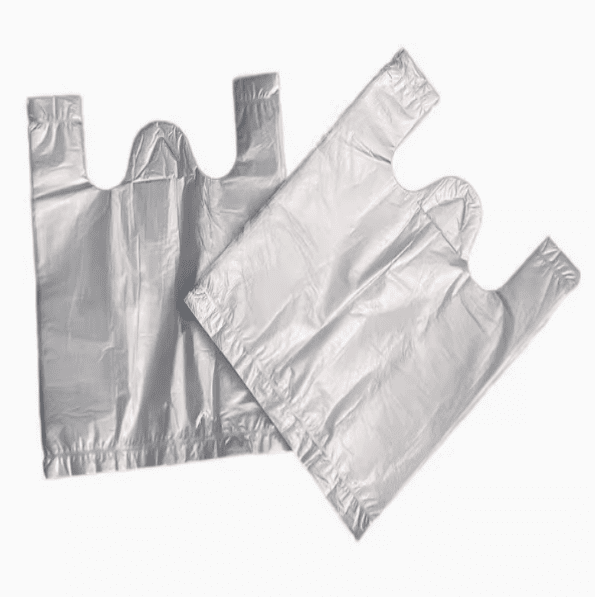

Finished Products

1. This machine adopts photoelectric unloading, photoelectric detection of color mark, and automatic adjustment of sealing and cutting position.

3. Easy to operate, smooth and firm sealing, stable operation, fast speed and high degree of automation.

4. Computer-controlled, automatic counting and can set counting alarm, high efficiency, saving manpower and time;

5. From film roll to finished bag, it is fully automatic and completed in one go;

6. Stepper motor fixed length, photoelectric tracking, accurate and stable, feeding adopts photoelectric control;

7. Adopt heat sealing and cold cutting device and intelligent temperature control system to make the bag mouth seal firm and smooth;

8. Domestic stepper motors use frequency converters for speed regulation;

9. Can be equipped with automatic flushing

Mechanical parameters

Model	HR-DF-600	HR-DF-800	HR-DF-900	HR-DF-1000	HR-DF-1100	HR-DF-1200
Maximum Width	500 mm	700 mm	800 mm	900 mm	1000 mm	1100 mm
Maximum length	1500 mm	1500 mm	1500 mm	1500 mm	1500 mm	1500 mm
Bag thickness	0.01-0.30 mm	0.01-0.30 mm	0.01-0.30 mm	0.01-0.30 mm	0.01-0.30 mm	0.01-0.30 mm
Production speed	20-60 m/min	20-60 m/min	20-60 m/min	20-60 m/min	20-60 m/min	20-60 m/min
Motor power	1.5 kW	1.5 kW	1.5 kW	1.5 kW	1.5 kW	1.5 kW
Feeding motor	300W	300W	300W	400W	400W	400W
Aspect	2300×1200×1700 (mm)	2300×1400×1700 (mm)	2300×1500×1700 (mm)	2300×1600×1700 (mm)	2300×1700×1700 (mm)	2300×1800×1700 (mm)
