Single Channel Bottom Seal C Fold Roll Bag Machine
Single-Channel Bottom-Seal C-Fold Roll Bag Machine
Single-Channel Bottom-Seal C-Fold Roll Bag Machine

Single-Channel Bottom-Seal C-Fold Roll Bag Machine

1.Suitable for bottom-sealed large roll bags

2.C-fold unit make film roll small

3.The sealing strong+Tear easily

Contact Us

Mechanical Parameter

Model HRCZ-800 HRCZ-1000 HRCZ-1200
Production line 1 line 1 line 1 line
Bag making width 700mm 900mm 1100mm
Bag making length 300-1500mm 300-1500mm 300-1500mm
Max.bag roll width 200mm 250mm 300mm
Bag making thickness 0.01-0.05mm 0.01-0.05mm 0.01-0.05mm
Bag making speed 50-200pic/min 50-200pic/min 50-200pic/min
Set line speed 80-100m/min 80-100m/min 80-100m/min
Rewinder diameter 160mm 160mm 160mm
Air pressure 3HP 4HP 4.5HP
Total power 12KW 14KW 16kw
Voltage Ac380V/50Hz Ac380V/50Hz Ac380V/50Hz
Weight 2200KG 2500KG 2800KG
Size 7000x1900x1800 7000x2200x1800 7500x2400x1800

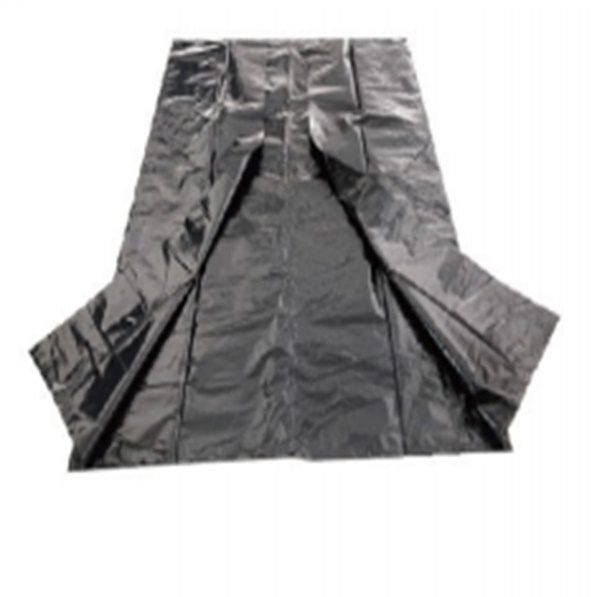

Finished Products

1) Delivery within 25 days

2) Payment:30% T/T in advance,70% before delivery
