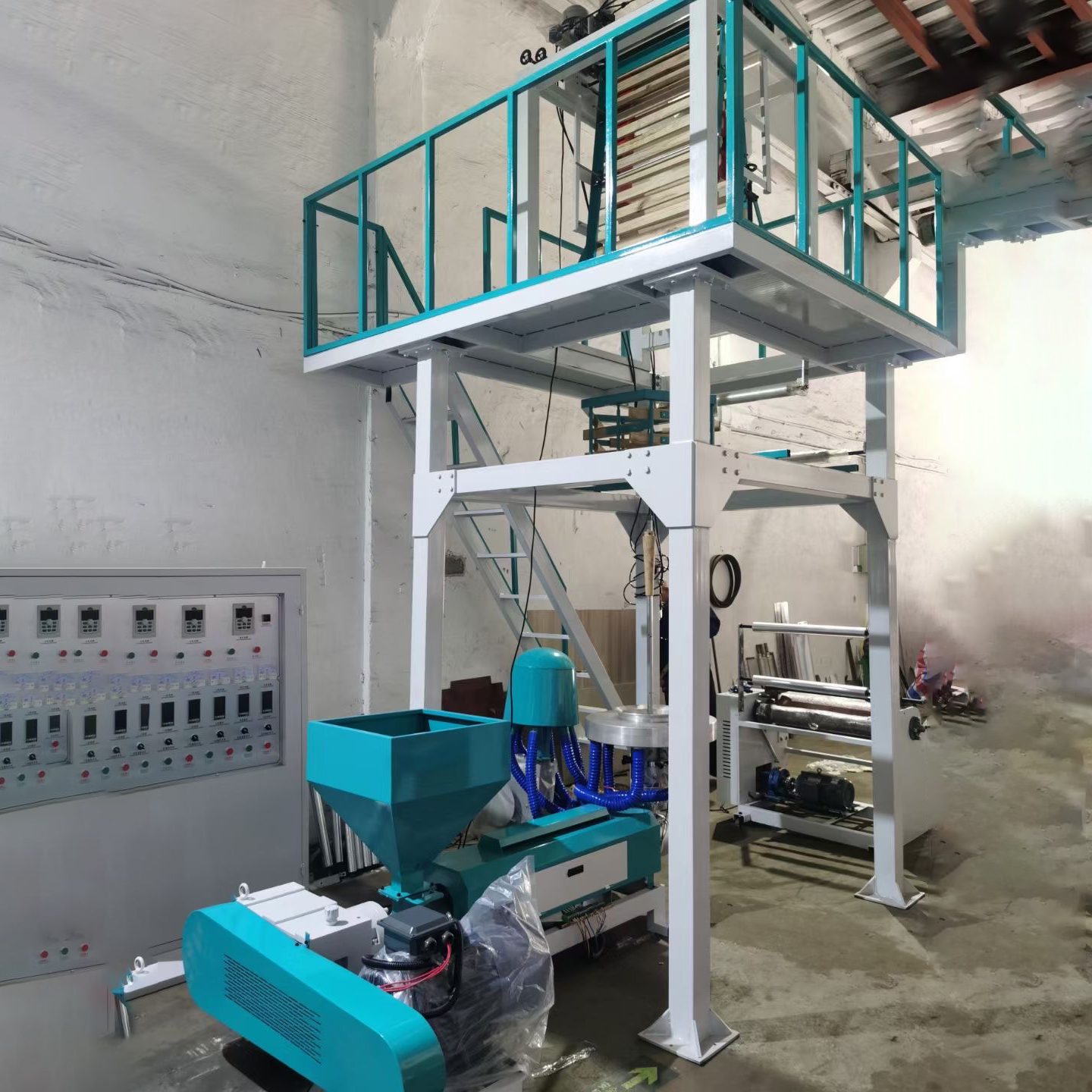

Ordinary Film Blowing Machine

1. Efficient production
After the film blowing machine heats and melts the plastic raw materials through the extruder, it uses airflow to blow and shape them. It has high production efficiency and can produce films quickly and continuously.
Adopting advanced frequency conversion technology and automatic control system, it can achieve precise speed and temperature control, further improving production efficiency.
2. Excellent film quality
The produced film has good physical properties, such as barrier properties, freshness preservation, moisture resistance, frost resistance, oxygen isolation, oil resistance, etc.
The film has uniform thickness, high transparency, moderate strength, and is suitable for a variety of packaging and application requirements.

1. Efficient production
After the film blowing machine heats and melts the plastic raw materials through the extruder, it uses airflow to blow and shape them. It has high production efficiency and can produce films quickly and continuously.
Adopting advanced frequency conversion technology and automatic control system, it can achieve precise speed and temperature control, further improving production efficiency.
2. Excellent film quality
The produced film has good physical properties, such as barrier properties, freshness preservation, moisture resistance, frost resistance, oxygen isolation, oil resistance, etc.
The film has uniform thickness, high transparency, moderate strength, and is suitable for a variety of packaging and application requirements.
3. Energy saving and environmental protection
The film blowing machine uses energy-saving technologies in the heating and power parts, such as electromagnetic heaters and inverters, which can significantly reduce energy consumption.
The electromagnetic heater has high thermal efficiency and fast heating speed, which reduces preheating time and energy waste.
4. Multi-function and flexibility
Different types of films can be produced according to demand, such as PE, PVC, POF, etc.
The multi-layer co-extrusion film blowing machine can co-extrude multiple materials together to produce composite films with multiple functions.
5. Compact structure and high degree of automation
The equipment has a compact structure, stable operation and easy operation.
Equipped with functions such as automatic temperature measurement, automatic deviation correction and automatic winding, it reduces manual intervention and improves production stability.
6. Wide application
The film produced by the film blowing machine is widely used in food packaging, medical packaging, agricultural film, daily necessities packaging and other fields.
In summary, the film blowing machine plays an important role in the production of plastic films with its high efficiency, energy saving, high degree of automation and excellent film quality.

Model 700 Type Blown Film Machine
Voltage AC /380V /50HZ
Film Width 600MM
Film Thickness 0.02-0.2
Screw Speed 100r/min
Main Motor 15KW
Gear Case 146
Screw 50mm
Single Winding 700 Type
Vane 620mm
Fan 1.5kw
Output Approximately 40KG/
