High-Speed Cold-Cut Bag Machine

1.This machine adopts photoelectric discharge material, photoelectric detection color standard, automatically adjust the sealing position.

2.The main motor adopts frequency conversion control motor, designed the upper shutdown, keyboard set customized bag length, electronic count, stepper motor through computer control sealing, equipped with electrostatic elimination device.

1.This machine adopts photoelectric discharge material, photoelectric detection color standard, automatically adjust the sealing position.

2.The main motor adopts frequency conversion control motor, designed the upper shutdown, keyboard set customized bag length, electronic count, stepper motor through computer control sealing, equipped with electrostatic elimination device.

3.It has the advantages of convenient operation, smooth and firm sealing, stable work, fast speed and high degree of automation.

4.Specialized in the production of small unprinted vest bags and flat bag

5.Automatic punching device

6.Split-type hot-cut copper knife

7.Split-type cold-cut alloy knife

8.Full servo motor control

Mechanical Parameter

Model HR-DF-1000 HR-DF-1200
Maximum Width 900mm 1100mm
Maximum Length 1500mm 1500mm
Bag-Making Thickness 0.01-0.30mm 0.01-0.30mm
Production Speed 120-360m/min 120-360m/min
Power of motor 1.5kw 1.5kw
Feeding Motor DC Motor 300w×6 DC Motor 400w×6
Overall dimension 2300×1600×1900(mm) 2300×1800×1900(mm)

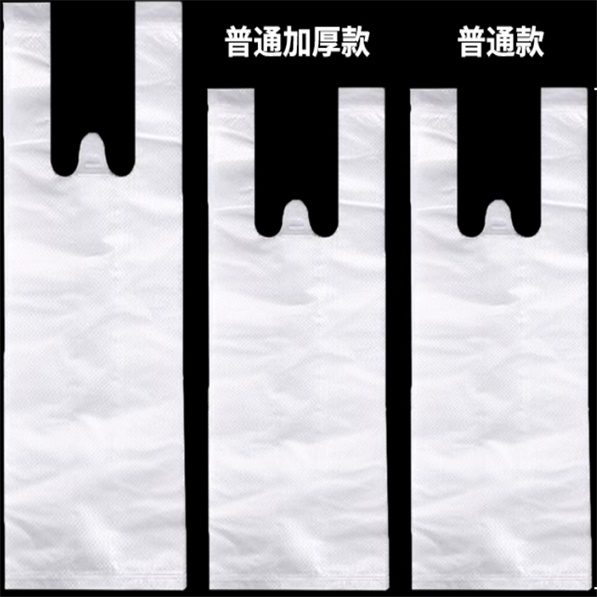

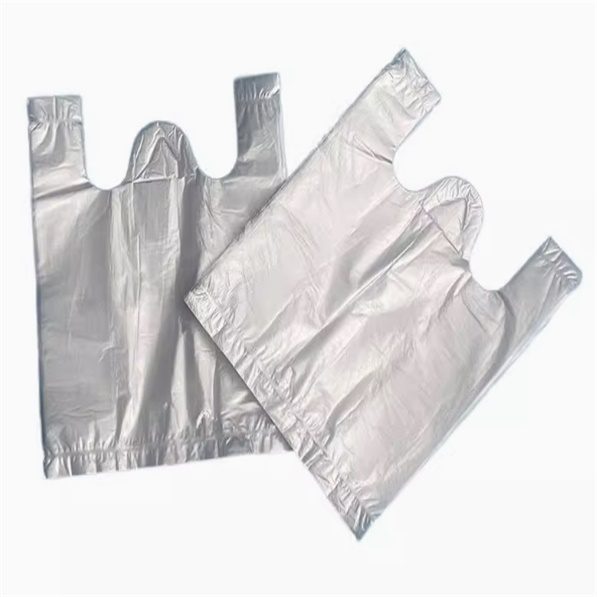

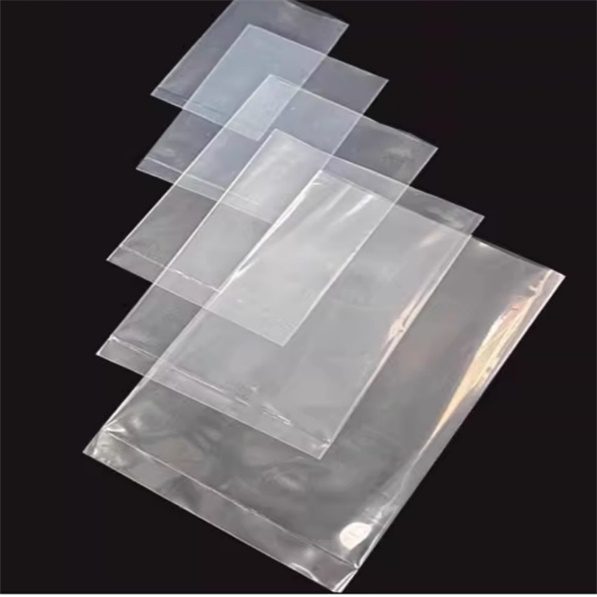

Finished Products

1) Delivery within 25 days

2) Payment:30% T/T in advance,70% before delivery
