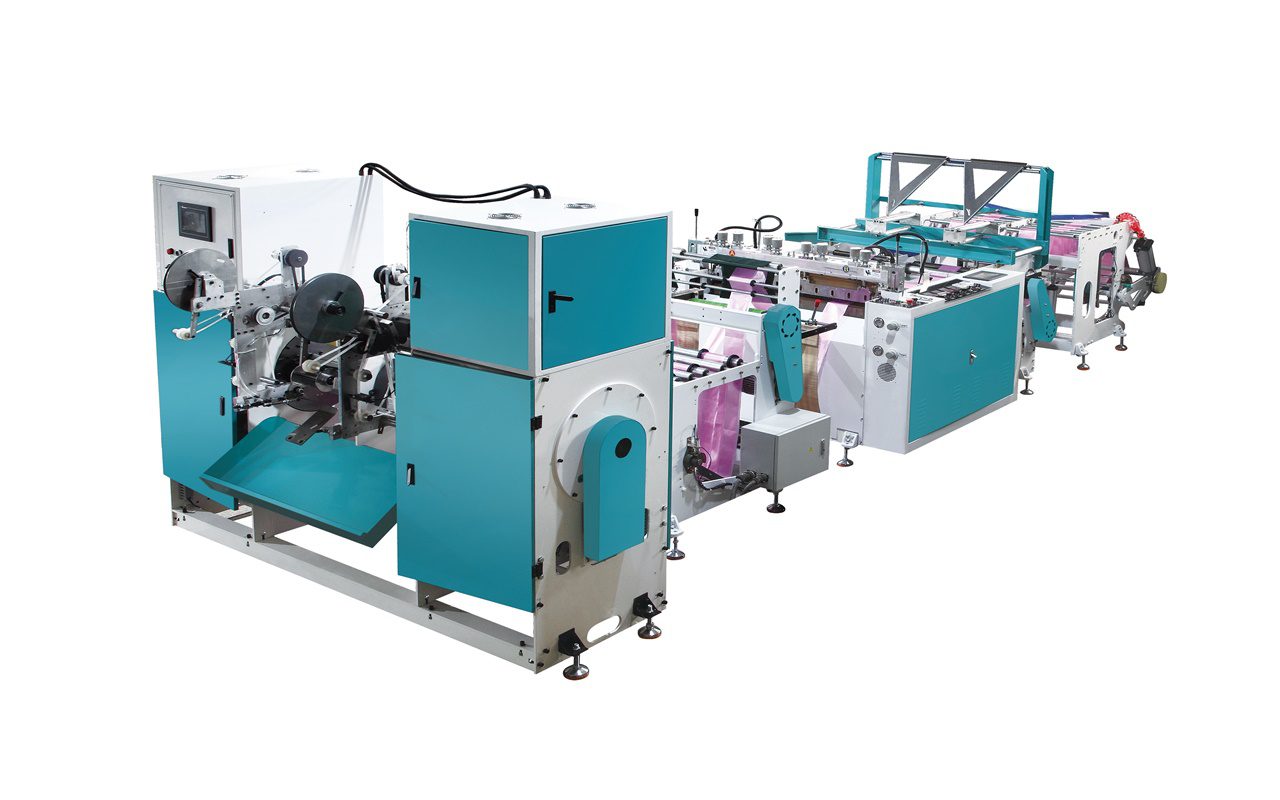

Fully Auto 8-Times Fold Garbage Bag Roll Machine

1.For star sealing garbage bag on roll coreless

2.V-fold unit make film roll small

3.Sealing strong and tear easily

4.With EPC device make the film folding more eveness

5.With high voltage crevice sensor, film break and bagcount more accurate

6.Automatic rollrewinding and changing

Mechanical Parameter

Model HRBZ-350 HRBZ-450
Production line 2 line 2 line
Max.bag making width 300mm 400mm
Bag making length 300-1000mm 300-1000mm
Max.bag roll width 200mm 300mm
Bag making thickness 0.007-0.035mm 0.007-0.035mm
Bag making speed 50-200pic/minX2 50-200pic/minX2
Set line speed 80-100m/min 80-100m/min
Rewinder diameter 160mm 160mm
Air pressure 5.5HP 5.5HP
Total power 15KW 17KW
Voltage Ac380V/50Hz Ac380V/50Hz
Weight 2600KG 2800KG
Size 6700x1800x1800 6500x2000x1800

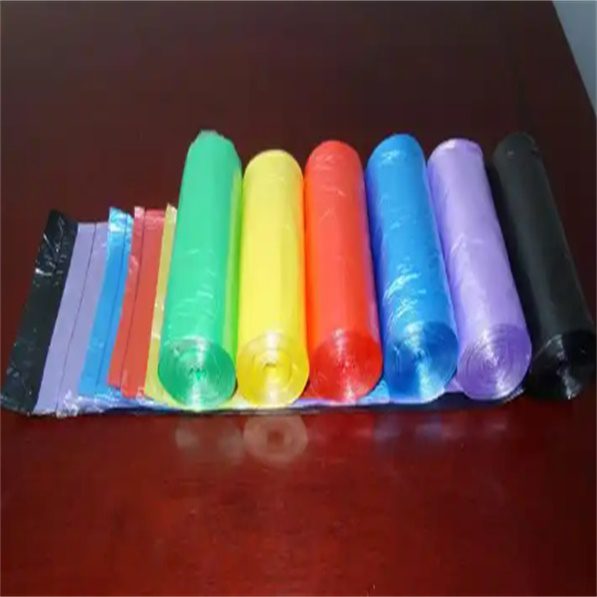

Finished Products
