Double-Layer 6-Line Heat-Seal Cold-Cut Bag Machine

1.This machine adopts photoelectric discharge material, photoelectric detection color standard, automatically adjust the sealing position.

2.The main motor adopts frequency conversion control motor, designed the upper shutdown, keyboard set customized bag length, electronic count, stepper motor through computer control sealing, equipped with electrostatic elimination device.

1.This machine adopts photoelectric discharge material, photoelectric detection color standard, automatically adjust the sealing position.

2.The main motor adopts frequency conversion control motor, designed the upper shutdown, keyboard set customized bag length, electronic count, stepper motor through computer control sealing, equipped with electrostatic elimination device.

3.It has the advantages of convenient operation, smooth and firm sealing, stable work, fast speed and high degree of automation.

4.Computer automatic control, automatic counting and can set the count alarm, high efficiency, save manpower and time;

5.From the rolling film to the finished bag, it is fully automatic one-time completion;

6.Stepper motor fixed length, photoelectric tracking, accurate, stable, feeding using photoelectric control;

7.Using heat sealing and cold cutting device, the intelligent temperature control system makes the bag mouth seal firmly and smooth;

8.Domestic stepper motors utilize frequency converters for speed control;

9.Can be equipped with automatic flush

Mechanical Parameter

Model HR-LX-1000 HR-LX-1100 HR-LX-1200
Max. Width 900mm 1000mm 1100mm
Max. Length 1500mm 1500mm 1500mm
Bag-Making Thickness 0.01-0.30mm 0.01-0.30mm 0.01-0.30mm
Production Speed 20-60m/min 20-60m/min 20-60m/min
Power of motor 1.5kw 1.5kw 1.5kw
Feeding Motor 400w 400w 400w
Dimension 2300×1600×1700(mm) 2300×1700×1700(mm) 2300×1800×1700(mm)

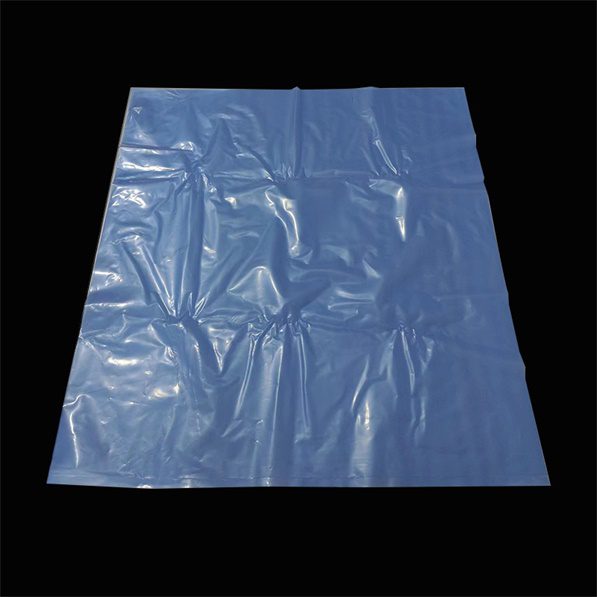

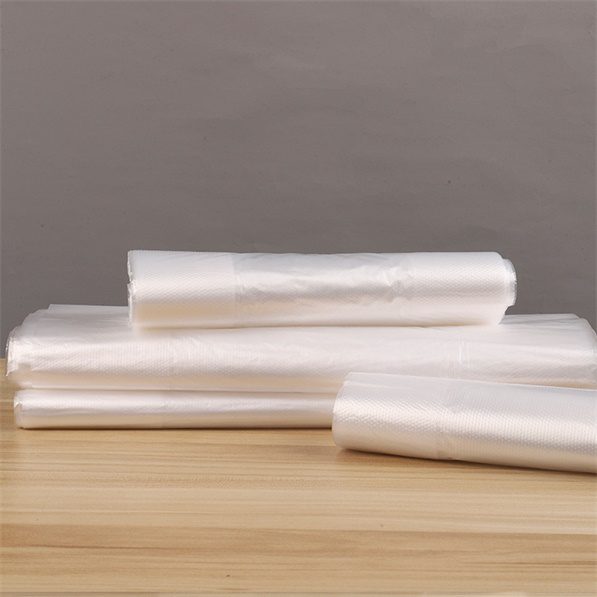

Finished Products

1) Delivery within 25 days

2) Payment:30% T/T in advance,70% before delivery
